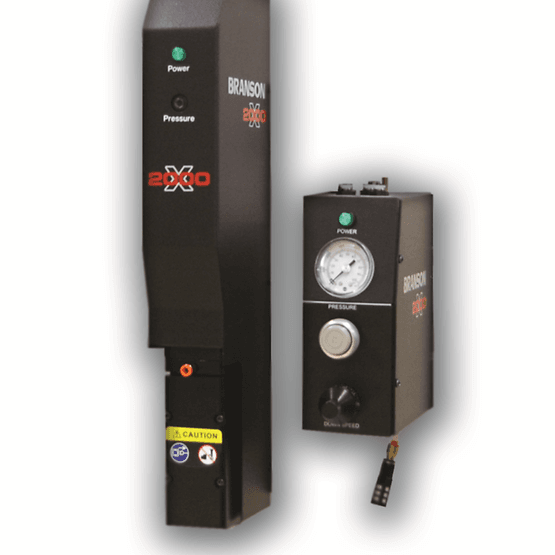

Branson 2000X Micro Ultrasonic Welder
Specifications
Features
Documents & Drawings
Specifications
Specifications
- Actuation
- Pneumatic
- Control Level
- ae
- Cylinder Size
- 1.5, 2.0, 2.5, 3.0, 3.25
- Data Interface
- USB, Ethernet
- Frequency
- 15, 20, 30, 40 kHz
- Output Power
- 0.75 kW, 0.8 kW, 1.25 kW, 2.5 kW, 4.0 kW
- User Interface
- Touchscreen, LCD
- Weld Modes
- Time, Energy, Peak Power, Ground Detect
Features
Features
- Weld by time, energy, peak power, or ground detect.
- Digital amplitude control with patented amplitude profiling.
- Available in 15, 20, 30 and 40 kHz.
- Optional VGA touch screen.
- True digital autotune with memory for fully-automatic tuning and storage of frequency at the end of each weld.
- Programmable starting ramp time.
Documents & Drawings
- Brochures
- Drawings & Schematics
- Manuals & Guides
Contact us today to discuss the requirements for your custom automation solutions.
