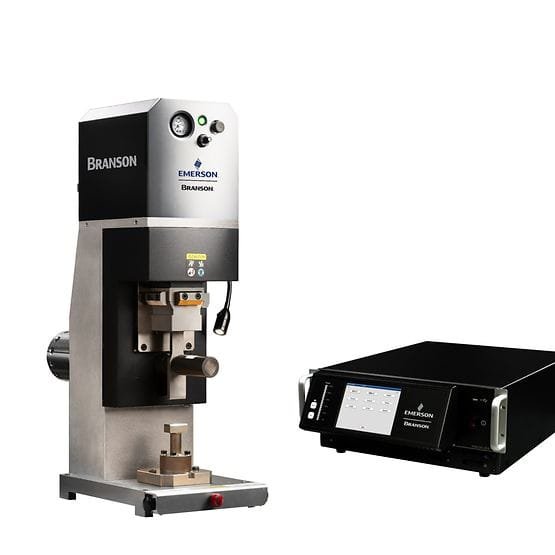

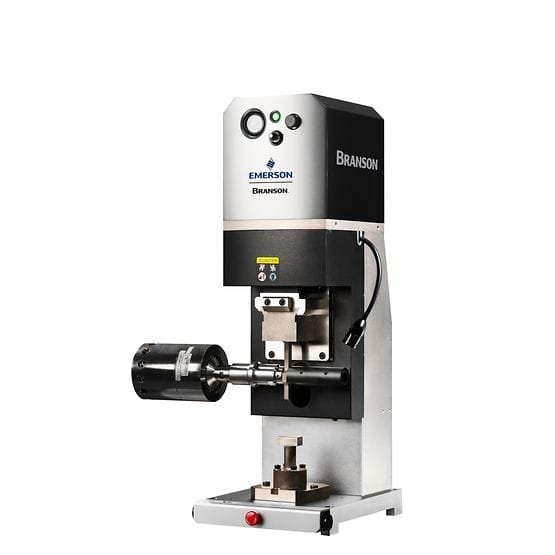

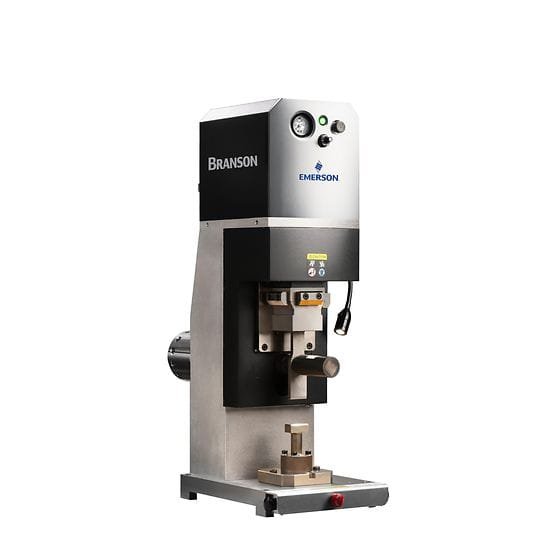

Branson GMX-20DP Ultrasonic Spot Welder
Branson GMX-20DP Ultrasonic Spot Welder
Product Description
The Branson GMX-20DP ultrasonic spot welder is designed and built to assure the highest degree of reliability and weld quality. The unique mechanical design of the GMX-20DP allows for a wide range of complex applications while delivering high levels of precision and process control.
Specifications
Features
Documents & Drawings
Specifications
Specifications
- Overall dimension (actuator)
- 425mm x 312mm x 890mm (16.7” x 12.3” x 35”)
- Gross weight
- 140kg (308 lbs)
- Working voltage
- 220V (4kW), 3 phase 480V (5.5kW)
- Air supply requirement
- Minimum 0.6MPa, 87 psi
- Maximum Stroke
- 50mm
- Valid stroke
- 11-45mm
Features
Features
- Unique pressure applying mechanism enables more efficient ultrasonic energy transmission
- Lower vibration amplitude results in low heat and particulate during welding, better protecting parts through the weld process
- Pressure trig mechanism enables accurate welding control to ensure welding quality
- High definition linear encoder enables precision height and distance control during welding to ensure accuracy
- Various welding modes enable wide range of applications
- Real-time welding data allows quality monitoring and enables seamless connection to Manufacturing Execution System (MES)
Documents & Drawings
- Brochures
- Drawings & Schematics
- Manuals & Guides
Contact us today to discuss the requirements for your custom automation solutions.
