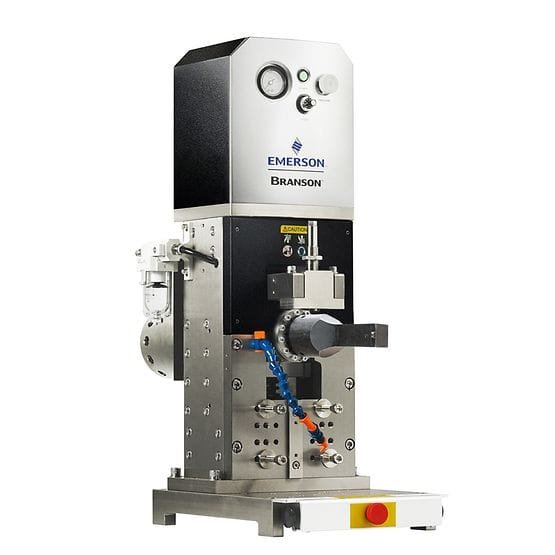

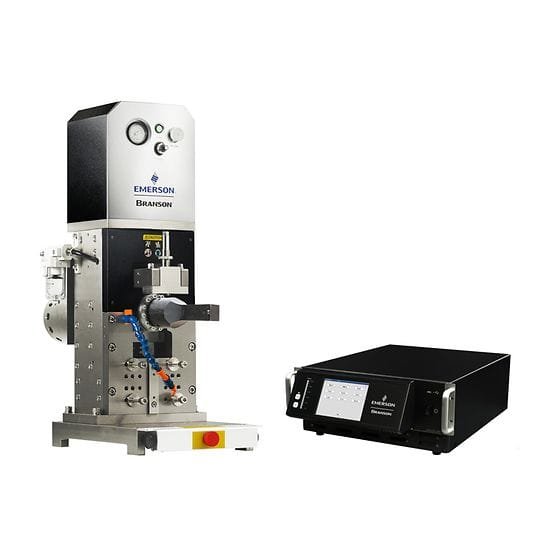

Branson GMX-20MA Ultrasonic Spot Welder


Branson GMX-20MA Ultrasonic Spot Welder
Product Description
Branson’s GMX-20MA is a newly developed ultrasonic spot welder with robust mechanical design and precise welding process monitoring. The GMX-20MA ensures high welding quality and consistency, the superior performance which Branson ultrasonic metal welding technology guarantees to our customers.
Specifications
Features
Documents & Drawings
Specifications
Specifications
- Overall dimension (actuator only)
- 425 x 329 x 750 (mm) (L x W x H)
- Gross weight
- 90 kg
- Working voltage
- 220V (4KW), 3 phase 380V (5.5KW)
- Air supply requirement
- minimum 0.6Mpa, 87Psi
- Maximum Stroke
- 50mm
- Valid stroke
- 11~45mm
- Power supply controller
- 2000Xct
Features
Specifications
- Overall dimension (actuator only)
- 425 x 329 x 750 (mm) (L x W x H)
- Gross weight
- 90 kg
- Working voltage
- 220V (4KW), 3 phase 380V (5.5KW)
- Air supply requirement
- minimum 0.6Mpa, 87Psi
- Maximum Stroke
- 50mm
- Valid stroke
- 11~45mm
- Power supply controller
- 2000Xct
Documents & Drawings
Contact us today to discuss the requirements for your custom automation solutions.
