Branson GMX-HP Ultrasonic Metal Welder
Branson GMX-HP Ultrasonic Metal Welder
Product Description

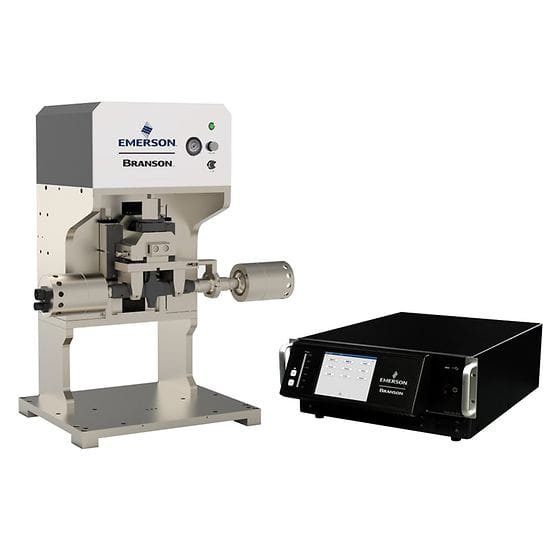

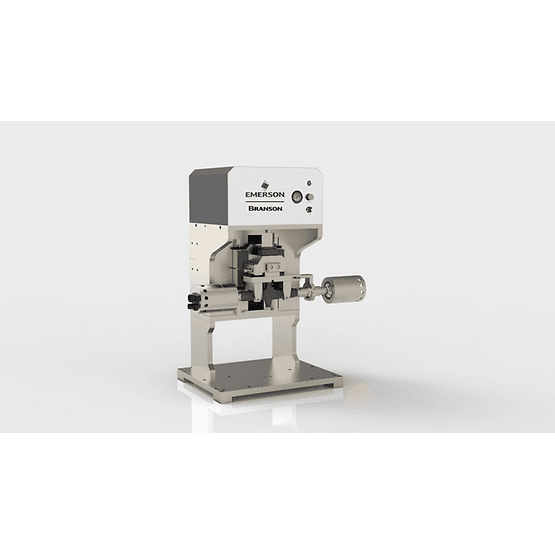

GMX-HP is a new member of Branson GMX ultrasonic metal welding product portfolio. The unique and innovative mechanical design and precision manufacturing endow GMX-HP with superior welding capacity and excellent welding quality for high energy batteries, large cross-section wire terminations and busbars.
Specifications
Features
Documents & Drawings
Specifications
Specifications
- Overall dimension (actuator only)
- 613.6 x 510.25 x 978 (mm) (L x W x H)
- Gross weight
- 270kg
- Working voltage
- 400-480V (Max. 8KW)
- Air supply requirement
- minimum 0.6Mpa, 87Psi
- Maximum Stroke
- 100mm
- Valid stroke
- 20~95mm
Features
Features
- Modular welding machine structure design with three types of installation provides more convenience and feasibility for automated matching.
- Horn compatibility design provides greater expansibility and practicability for applications in different industries.
- High-power ultrasonic welding power supply provides various welding modes and data interfaces to enable effective monitoring and data recording of welding quality.
- Safe quick release device for horn allows shortening time for replacing the horn and significant improvement in the replacement efficiency.
Documents & Drawings
- Brochures
- Data Sheets & Bulletins
- Interface Manual: 4000843 DCX Web Page
- Interface Manual: 4000849 DCX AF Web Page
- Operator Manual: 4000850 DCX S Power Supply
- Operator Manual: 4000851 DCX V Power Supply
- Operator Manual: 4000852 DCX A Power Supply
- Operator Manual: 4000853 DCX F-EIP Power Supply
- Operator Manual: 4000854 DCX F-DP Power Supply
- Operator Manual: 4000839 DCX S Power Supply
- Operator Manual: 4000840 DCX V Power Supply
- Operator Manual: 4000846 DCX A Power Supply
- Operator Manual: 4000847 DCX F-EIP Power Supply
- Operator Manual: 4000848 DCX F-DP Power Supply
- Quick Start Guide: 4000841 DCX S
- Quick Start Guide: 4000842 DCX V
Contact us today to discuss the requirements for your custom automation solutions.
