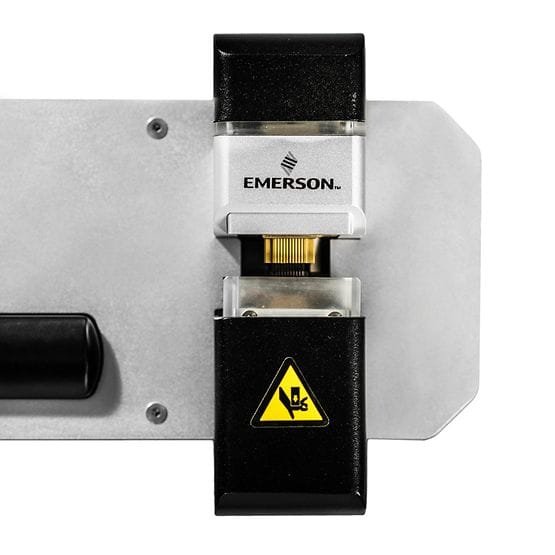

Branson GMX-W1 Wire Splicer



Branson GMX-W1 Wire Splicer
Product Description
The Branson GMX-W1 joins wires reliably and quickly while providing maximum maneuverability. A user-friendly HMI and portable, ergonomic design make it easy to use as either an in-line or tabletop system. This product is designed for copper wire harness, although other materials may be possible upon testing and qualification.
Specifications
Features
Documents & Drawings
Specifications
Specifications
- Frequency
- 20 kHz
- Output power
- 4000 W
- Actuation
- Pneumatic
- Cooling system
- Air
- Pneumatics type
- 5.5 bar (80 psi) clean, dry air
- Special feature
- Cutter Module
- User interface
- 22″ capacitive touch screen
- Data interface
- USB, Ethernet
- Input power
- 200~230V single phase, 25A max
- Overall dimensions
- 6.7″ (W) x 7.9″ (H) x 19.9″ (L)
Features
Features
- Anti-side welding
- Ergonomic design
- User-friendly HMI
- Automatic calibrations
- LED color status indicator
- 22-inch capacitive touchscreen
- In-line wire cutter module
- Capable of splicing wires with cross section up to 40mm²
- Suitable for splicing wire with cross section of 0.13mm²
Documents & Drawings
- Brochures
- Manuals & Guides
Contact us today to discuss the requirements for your custom automation solutions.
