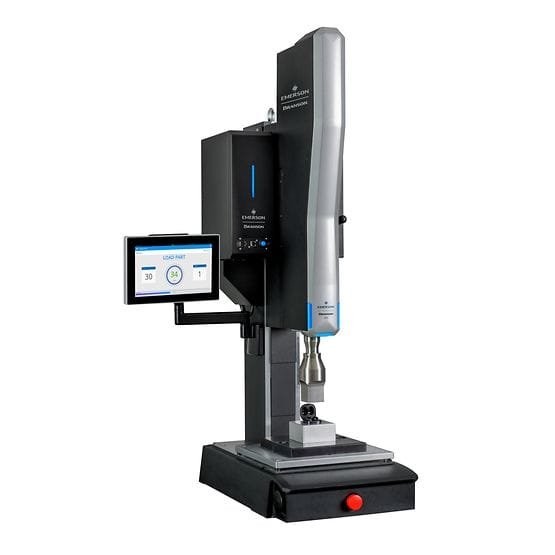

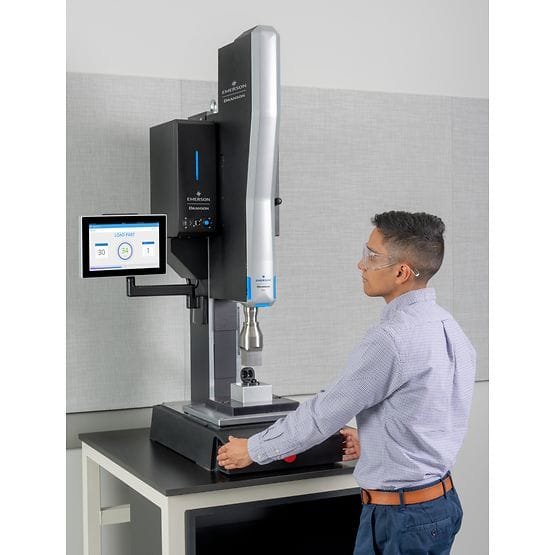

Branson GSX Ultrasonic Welder
Branson GSX Ultrasonic Welder
Product Description
Designed to support a constant demand for the assembly of smaller and more intricate plastic components. The Branson GSX Ultrasonic Welding Platform is an advanced and intuitive flexible joining solution, designed to optimize and ensure quality welds, while helping manufacturers meet project timelines and deliver expected return on investments.
Specifications
Features
Documents & Drawings
Specifications
Specifications
- Actuation
- Electro mechanical advanced actuation system
- Control level
- Elite Precision, Elite Precision+
- Data Interface
- USB
- Frequency
- 20, 30, 40 kHz
- Output power
- 0.8kW, 1.25kW, 1.5kW, 2.5kW and 4.0kW
- User interface
- HMI (10″ HMI touchscreen)
- Weld modes
- Time, Energy, Peak Power, Ground Detect, Distance (collapse & absolute), Dynamic Weld Mode
- Force range
- Up to 2500 Newtons
Features
Features
- Electro mechanical advanced actuation system with patented amplitude profiling and force stepping technology
- Low trigger force of 5N for delicate and miniaturized parts.
- Closed loop actuation system can be instantaneously adjusted based on real-time feedback and provides unprecedented control and position accuracy
- Best-in-class repeatability
- New quick-change process provides a faster set up time
- New square column design improves rigidity and alignment retention
- Faster start up time (Under 60 seconds)
- Intuitive and easy to use HMI screen
- Smart Features such as the Find Part Contact and Dynamic Mode
Documents & Drawings
- Brochures
- Data Sheets & Bulletins
- Drawings & Schematics
- Manuals & Guides
