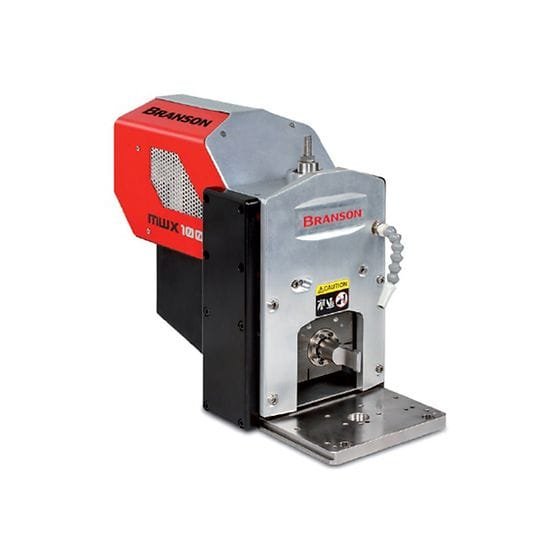

Branson MWX100 Spot Welder

Branson MWX100 Spot Welder
Product Description
The Ultraweld MWX-100 is the most versatile Spot Welder available, providing the highest levels of flexibility, efficiency and economy. It can be easily tooled for a wide range of non-ferrous metal welding applications. It is ideal for precise welding of smaller gauge nonferrous metal, delicate assemblies such as batteries, photovoltaic cells, automotive air bag systems, capacitors, and other critical components.
Specifications
Features
Documents & Drawings
Specifications
Specifications
- Actuation
- Pneumatic
- Cooling System
- Air
- Data Interface
- USB, Ethernet
- Frequency
- 40kHz
- Input Power
- 200-230V, 50/60 Hz
- Output Power
- 400W, 800W
- Overall Dimensions
- 363mm x 215mm x 432mm (H x W x L)
- Pneumatics Type
- 5.5 bar (80 psi) clean, dry air
- Special Feature
- Password protection
- User Interface
- Touchscreen, LCD
- Weld Modes
- Time, Energy
Features
Features
- Precision crossed-roller bearing slides to assure smooth operation and extreme accuracy
- Versatile frame available for table, gantry/overhead, or surface mount
- System can quickly be configured to adapt to various applications
- Precise adjustments for accurate setting of both upper and lower positive stops
- Conveniently located flow controls offering easy adjustment of head speed in both directions
- A polar mounted ultrasonic stack to facilitate setup and efficient transmission of ultrasonic energy to the horn
- Titanium horns with low cost replaceable tips, or solid tool steel horns, for fast setup and minimum tooling cost
- Increased head travel for ease of part loading and unloading. The MWX100 offers manufacturers the highest reliability at the lowest cost per weld.
Documents & Drawings
